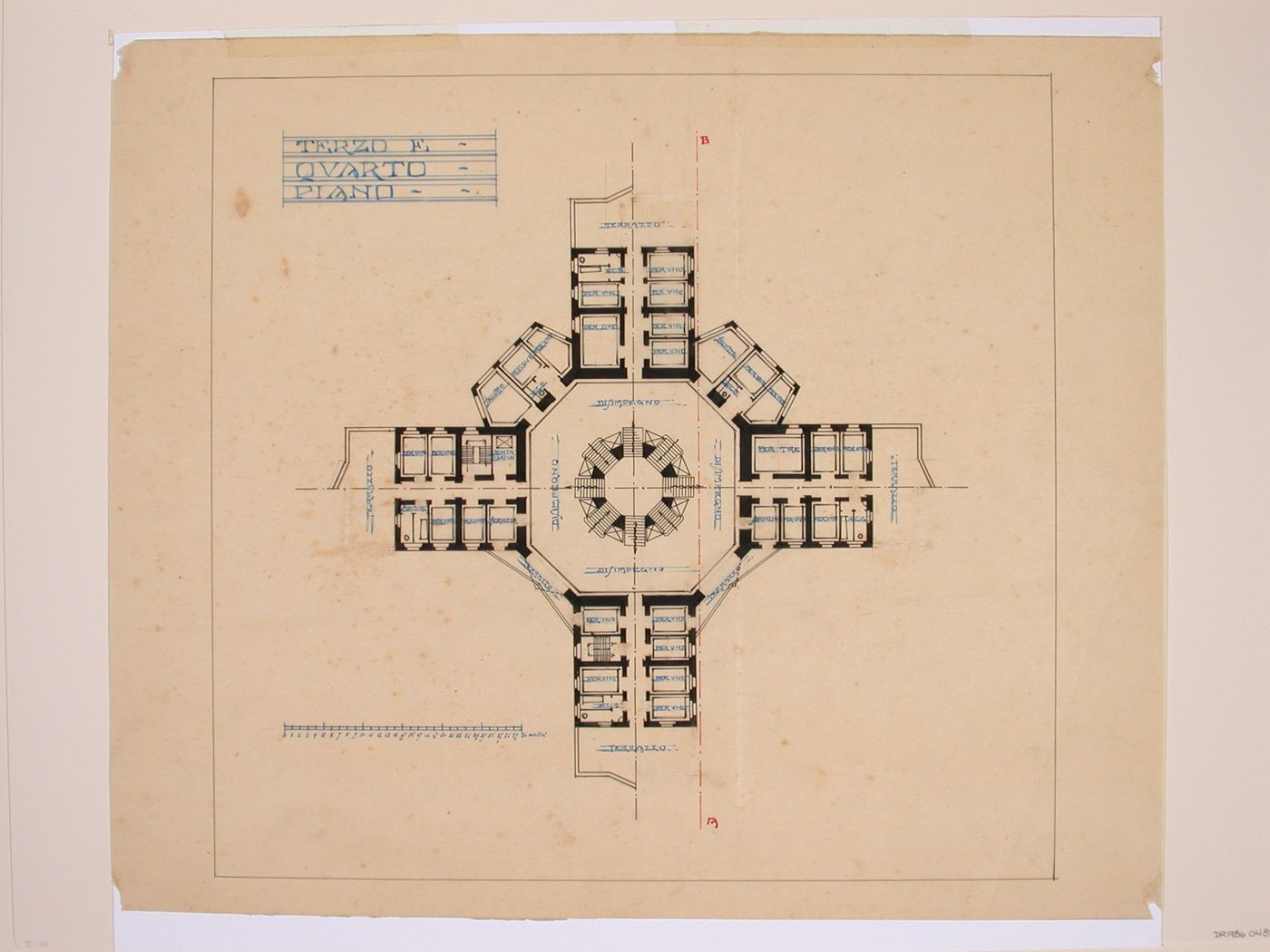

Plan of the third and fourth floors for an cruciform-plan hotel

People:

Virgilio Marchi (role unspecified)

Title:

Plan of the third and fourth floors for an cruciform-plan hotel

Date:

ca. 1920

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

exhibition drawing
publication drawing

Technique and media:

Pen and black ink, blue and red ink labelling, graphite underdrawing

Reference number:

DR1986:0485

Method of Projection:

plan (drawing)

Physical characteristics and technical requirements:

One of nine drawings (two elevations, one section, six floor plans) on seven sheets. The sheet containing the ground floor plan and two elevations is in the form of a triptych. The drawings, ink and graphite on paper and tracing paper, all measure approximately 40.0 x 40.0 cm.

Inscription:

inscribed - TERZO E/QUARTO/PIANO (blue ink, upperleft, artist's hand?), (rooms extensively labelled in blue ink, some graphiteunderlabelling), (section line `A-B' inscribed in red ink, lower centre toupper centre. The residual marks of an erased section line are found approximately one inch to the right of the above line) Bar scale inscribed from 0 to 30 metres (blue ink, L.L.)

Subject:

architecture

Subject Descriptive Terms:

hotel

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
