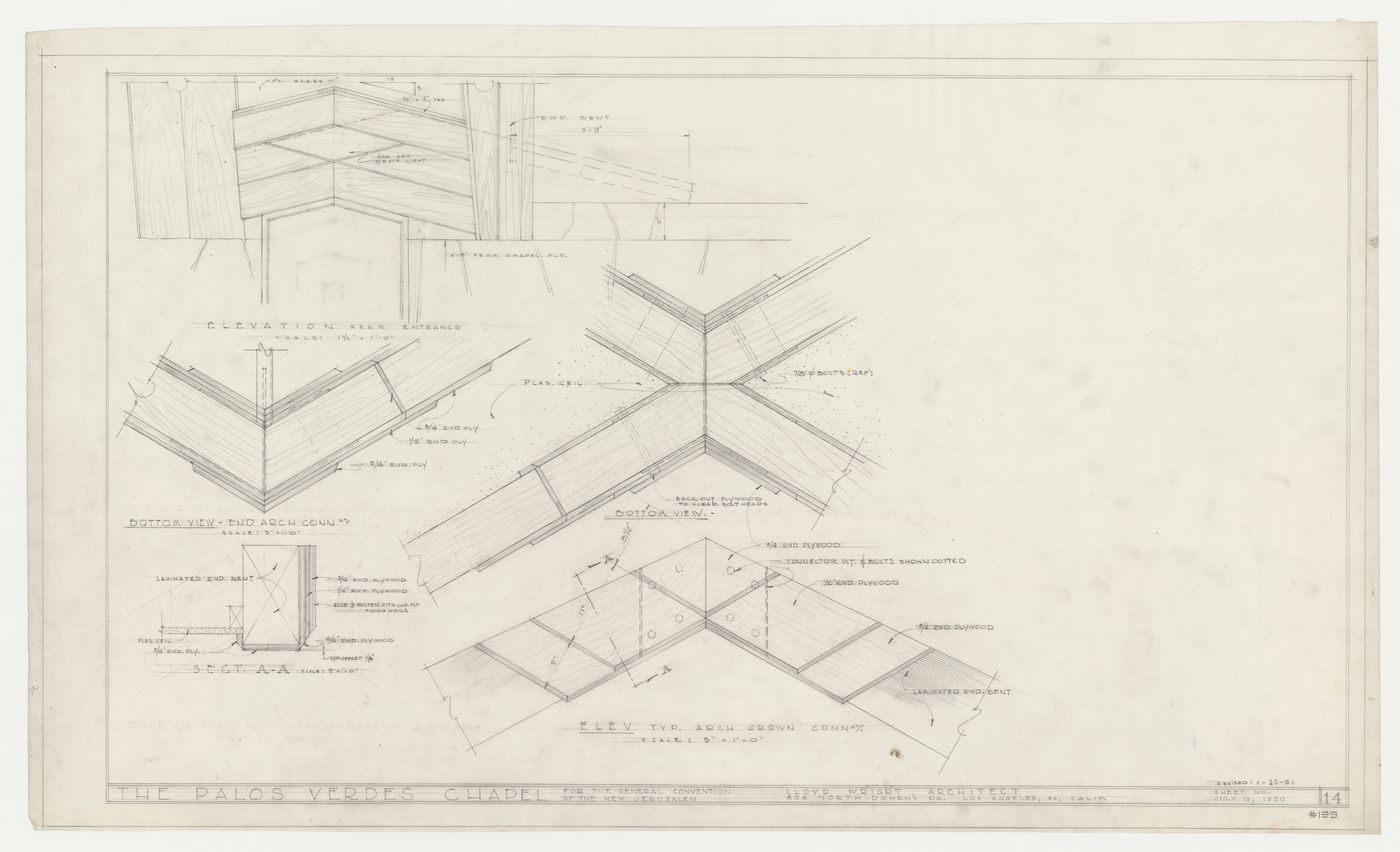

Wayfarers' Chapel, Palos Verdes, California: Elevation for woodwork surrounding the northeast entrance to the chapel and plans, elevation and section for truss joints
Wayfarers' Chapel, Palos Verdes, California: Elevation for woodwork surrounding the northeast entrance to the chapel and plans, elevation and section for truss joints
Part of:
People:
  • Lloyd Wright (architect)
  • Lloyd Wright (draughtsman)
Title:

Wayfarers' Chapel, Palos Verdes, California: Elevation for woodwork surrounding the northeast entrance to the chapel and plans, elevation and section for truss joints

Date:

13 July 1950, revised 25 January 1951

Form:
drawings
Quantity / Object type:
1 drawing(s)
Stage and Purpose:
  • working drawings
  • detail drawings
Technique and media:

Graphite

Dimensions:

sheet: 63.3 x 108.2 cm

Reference number:

DR1987:0556

Drawing Type:
  • line drawings
  • mechanical drawings (tool-aided drawings)
Method of Projection:
  • plans (drawings)
  • section
  • elevations (drawings)
Inscription:

inscribed, dated and numbered - by the draughtsman, in graphite, l.l. to l.r.: with title; b.: "LLOYD WRIGHT ARCHITECT / 858 NORTH DOHENY DR. LOS ANGELES, 46, CALIF."; l.r.: "REVISED: 1-25-51 / SHEET NO. 14 / JULY 13, 1950"; and in various locations: with identification of views, measurements and construction notes numbered - by the architect's son ? in graphite, l.r.: "#199" [job number]

Location:

United States

Subject:
  • architecture
Subject Descriptive Terms:
  • trusses
  • joints (connections)
Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
Copyright:

© Eric Lloyd Wright
