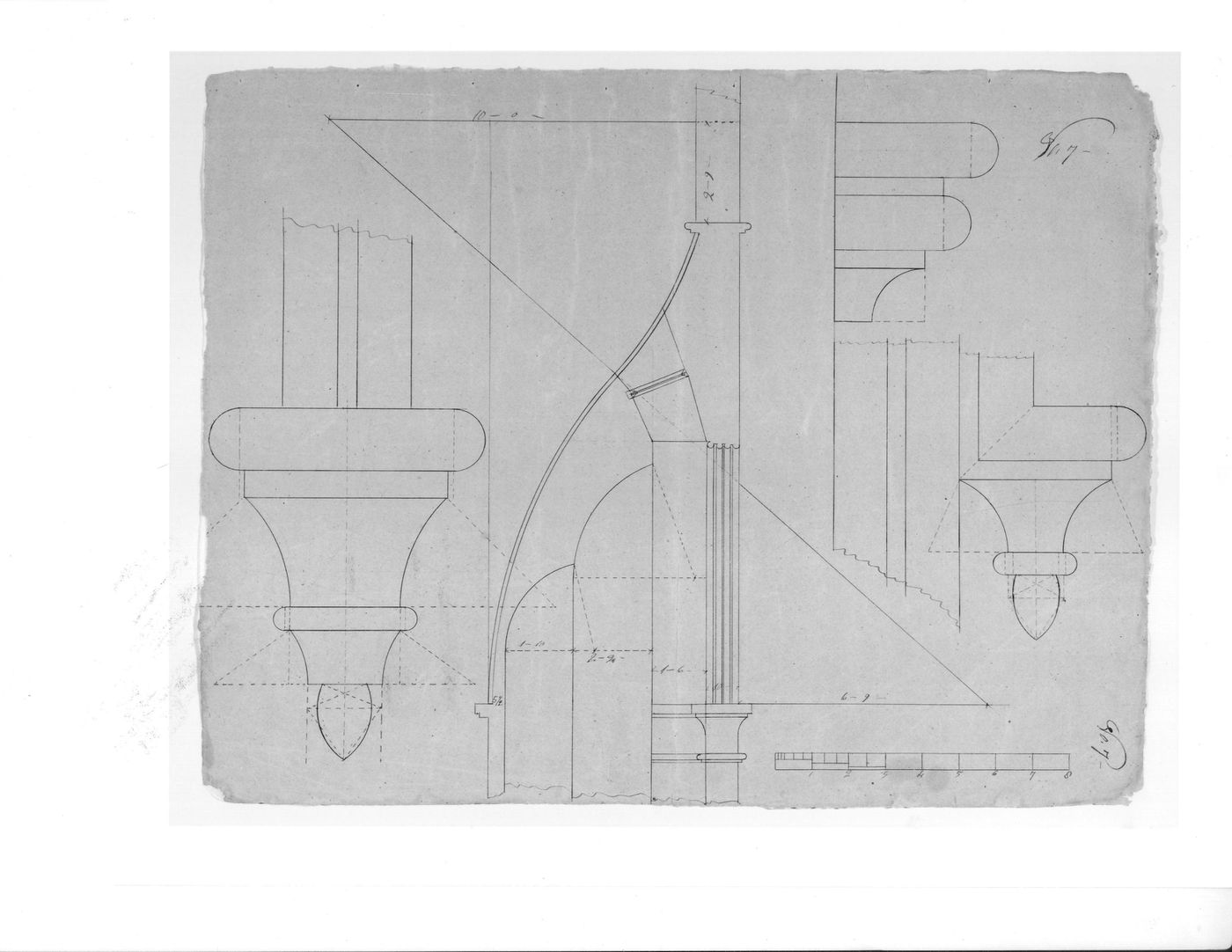

Section for side chapel vaults [?] and elevations for decorative drop details for Notre-Dame de Montréal

Part of:

People:

James O'Donnell (architect)
James O'Donnell (draughtsman)
Fabrique de Notre Dame (archive creator)

Title:

Section for side chapel vaults [?] and elevations for decorative drop details for Notre-Dame de Montréal

Date:

1823-1829

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawings
detail drawings

Technique and media:

Pen and black ink over graphite and graphite

Dimensions:

sheet: 51.2 x 65.5 cm

Reference number:

AR1996:1001:057

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)

Method of Projection:

section
elevations (drawings)

Point of View:

partial views
interior views

Inscription:

numbered - by the draughtsman, in pen and black ink, u.r.: "No. 7 -"; and l.r.: "No. 7 -" [sideways] inscribed - by the draughtsman, in pen and black ink, in various locations: with measurements

Location:

Montréal Island of Montréal Québec Canada

Subject:

architecture
interior design

Subject Descriptive Terms:

ornaments
vaults (structural elements)
drops

Credit line:
Fonds de la Fabrique Notre-Dame de Montréal, en dépôt au CCA/
Fonds de la Fabrique Notre-Dame de Montréal, on deposit at the CCA

Folder Number:

99-06-04
