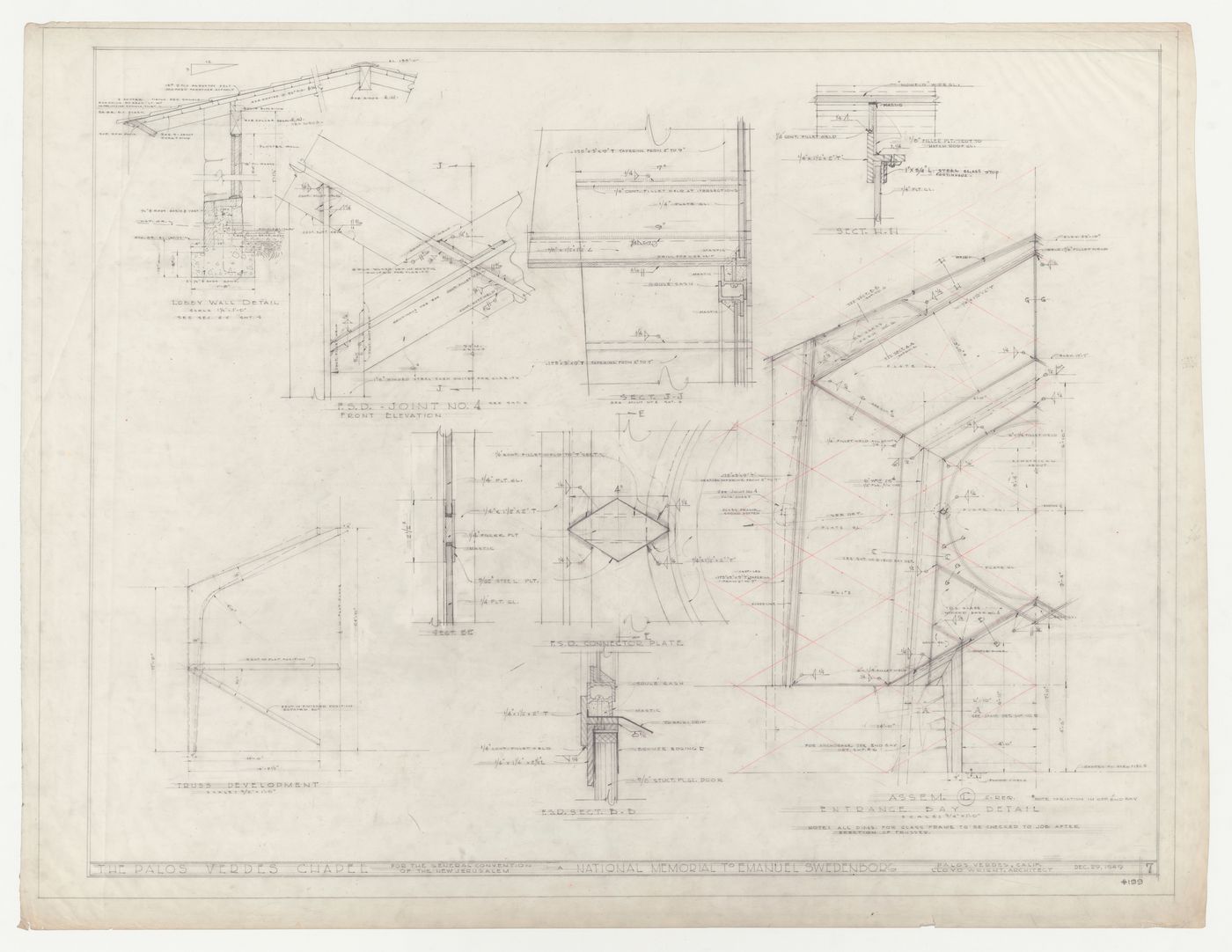

Wayfarers' Chapel, Palos Verdes, California: Half elevation developed on an equilateral parallelogram grid and details for the assembly for the chapel entrance bay, with elevation and plan for the bent trusses and a section detail through the lobby wall

29 December 1949

- The assembly half elevation shown on this sheet of drawings for Wayfarers' Chapel, Palos Verdes, California, was developed on the equilateral parallelogram grid ruled in red pencil. The grid unit is inscribed on several orthographic drawings (eg. DR1987:0530) and is described by Lloyd Wright in the architect's statement (DR1987:0869:011:009).

• dessin d'exécution
• assembly drawings
• dessins de détail

Graphite and red pencil

sheet: 92.8 x 121.1 cm

DR1987:0549

• line drawings
• mechanical drawings (tool-aided drawings)

• plan (drawing)
• sections (orthographic drawings)
• elevation (drawing)
• half elevation

• general views
• partial views

inscribed, dated and numbered - by the draughtsman, in graphite, l.l. to b.: with title; l.r.: "PALOS VERDES, CALIF. / LLOYD WRIGHT, ARCHITECT" and "DEC. 29, 1949 7 [sheet number]"; and in various locations: with identification of views, measurements, calculations and construction and assembly notes numbered - by the architect's son ? in graphite, l.r.: "#199" [job number]
